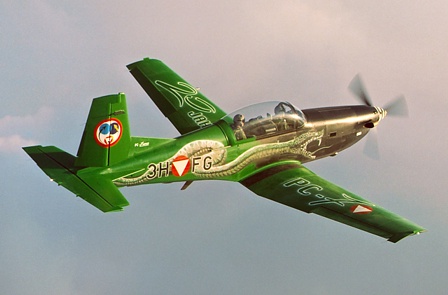

Pilatus PC-7 Turbo Trainer
Typ: einmotoriges Schulflugzeug
Hersteller: Pilatus Aircraft Ltd (CH)
Besatzung: 2 Piloten
Leermasse: 1.330 kg
max. Startgewicht: 2.700 kg
Länge: 9,77m / Spannweite: 10,40m / Höhe:
3,21m /
Flügelfläche: 16,60 m²
Triebwerke: 1x Pratt & Whitney Canada PT 6A-25A Turboprop mit
410 kW (550 PS)
Propeller: Hartzell HC-B3TN-2 3-Blatt Rotor
Tankinhalt: 474 Liter
Treibstoffverbrauch: 130 l/h (für Reisegeschwindigkeit)
Geschwindigkeit: Höchstgeschwindigkeit: 500 km/h; Reisegeschwindigkeit:
330 km/h
Steigfähigkeit: 865 m/min
max. Lastvielfaches: -3 bis +6 g
Reichweite: 1.460 km (in 6.100 m Höhe)
Dienstgipfelhöhe: 7.600 m
Pistenerfordernis: Start: 780 m bei max. Startgewicht / Landung:
505 m bei max. Landegewicht
Bewaffnung: 1.044 kg Außenlasten an sechs Pylonen.
2x 12,7mm Maschinengewehr M3P Browning in HMP-250 Pods von FN Herstal,
je 250 Schuss, Gesamtgewicht pro Pod: 116kg
2x7 70mm ungelenkte Raketen in LAU-7A Pods von FN Herstal, je Pod: 26kg
Leergewicht bzw. 91,1 kg Gesamtgewicht
Ausrüstung: 150kg Frachtbehälter
Pilatus PC-7 Turbo Trainer
The Pilatus PC-7 Turbo Trainer is a single engine training aircraft
fully certificated for aerobatics. It is used for basic and advanced
training courses. In an additional role the PC-7 is used for air policing
tasks during major events and state visits, were it is better suited
to intercept slow moving aircraft than jet planes. For tactical missions
the aircraft can be armed with machine gun- and missile pods.
Manufacturer: Pilatus Aircraft Ltd (CH)
Crew: 2 pilots
Weight empty: 1.330 kg
Max. Take-off Weight: 2.700 kg
Length: 9,77m / Wingspan: 10,40m / Height: 3,21m
/
Wing area: 16,60 m²
Engines: 1x Pratt & Whitney Canada PT 6A-25A Turboprop with 410
kW
(550 hp)
Propellers: Hartzell HC-B3TN-2 3-blade Propeller
Consumption: 130 liters per hour (at cruising speed)
Internal Fuel Tanks: 474 liters internal
Maximum Speed: max.: 500 km/h; Cruising Speed: 330 km/h
Climbing Rate: 865 m /min
G-limits: -3 to +6 g
Range: 1.460 km (in 6.100 m)
Service Ceiling: 7.600 m
Operational Runway Length: take-off: 780 m at max. take-off weight
/ landing: 505 m at max. landing weight
Armament: 1.044 kg payload on 6 hardpoints
2x 12,7mm Machine Gun M3P Browning in HMP-250 Pods by FN Herstal, 250
rounds each, weight: 116kg per pod
2x7 70mm unguided missiles in LAU-7A launchers by FN Herstal, empty
weight: 26kg or 91,1 kg loaded per launcher
Equipment: 150kg External Cargo
