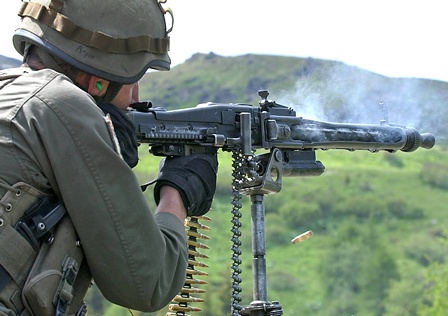

7,62 mm Maschinengewehr MG 74
Hersteller: Steyr Mannlicher (AUT)
Kaliber: 7,62 x 51 mm
Gesamtgewicht: 12 kg (mit Zweibein, ohne Munition)
Lafette: Dreibeinlafette "Lafette 74", 16 kg
Länge: 1220 mm / Breite: 130 mm / Höhe:
205 mm
Lauflänge: 565 mm
Drall/-Länge: Rechtsdrall / 476 mm
Züge: 4
Höchstschussweite: 3.750 m
Einsatzschussweite: 600 m; auf Lafette bzw. als Bordwaffe: 1.000
m
Feuergeschwindigkeit: theoretisch: 850 Schuss/min; praktisch:
250 Schuss/min
Dauerfeuer: 1.150 Schuss/min
Mündungsgeschwindigkeit: 830m/s (S-Patrone)
Munitionsarten: S-Patrone (Stahlmantelpatrone, 24g), Knall-,
Leuchtspur-, Exerzier-Patrone
Munitionszuführung: Stahlgliedergurt von links
Visiereinrichtung: mechanisch, auch Luftzielvisier, Zielfernrohr
74 mit Beta-
Light-Nachtbeleuchtung
Zubehör: Gurtkasten 74/200 (für 200 Schuss), Gurtkasten
74/50 (für 50 Schuss), 2 Reserveläufe, Tragegurt, 2 Werkzeugtaschen,
Reinigungsgerät 74, Lafette Lf 74, Zielfernrohr ZF 74 (4fach Vergrößerung,
von Zeiss/Hensoldt), Luftzielvisier, Knallpatronengerät 74
7,62mm Multi Purpose Machine Gun MG 74
The MG 74 was adopted by the Austrian
Armed Forces in the mid 1970s. The weapon is used with bipod as light
machine gun and on infantry tripod mount as "heavy" machine
gun (caliber 12,7 mm is called "extra heavy"). The version
used in fighting vehicles as coaxial weapon is called MG 74Pz.
The MG 74 is a short-recoil operated, air cooled, belt fed weapon, which
fires from an open bolt. The barrel is quick-removable and can be replaced
in a few seconds, although an asbestos glove is required to remove the
hot barrel. The design of the weapon is based on the legendary MG 42
used by the German Wehrmacht in World War 2. The MG 74 is an advanced
version of the MG 42/59 and it was develeoped by the Department of Defense-Technology
of the Austrian Armed Forces, Steyr Mannlicher (AUT) and Beretta (IT).
Manufacturer: Steyr Mannlicher (AUT)
Caliber: 7,62 x 51 mm
Weight: 12 kg (with bipod, without ammunition);
Infantry Tripod Mount: Lafette 74, 16kg
Length: 1220 mm / Width: 130 mm / Height: 205 mm
Barrel length: 565 mm
Muzzle velocity: 830 m/s
Rifling: 4x right hand twist / 476 mm
Max. range of fire: 3.750 m
Effective range of fire: 600 m (1.000 m on infantry tripod mount)
Rate of fire: theoretical: 850 rounds/min; practical: 250 rounds/min;
automatic fire: 1.150 rounds/min
Ammunition: Standard-, Blank-, Tracer-, Practice Ammunition
Feed system: belt (from left hand side)
Sight: Iron Sight, Ani-Aircraft Sight, Optical Sight ZF 74
Accessories: 200-round Belt Container, 50-round Drum-type Belt
Container, 2 Reserve Barrels, Blank Firing Attachment 74, Cleaning Kit
74, Infantry Tripod Mount Lf 74, Anti-Aircraft-Sight, Telescopic Sight
Zf 74 (4 times magnified by Zeiss/Hensoldt), Carrying Sling
|
